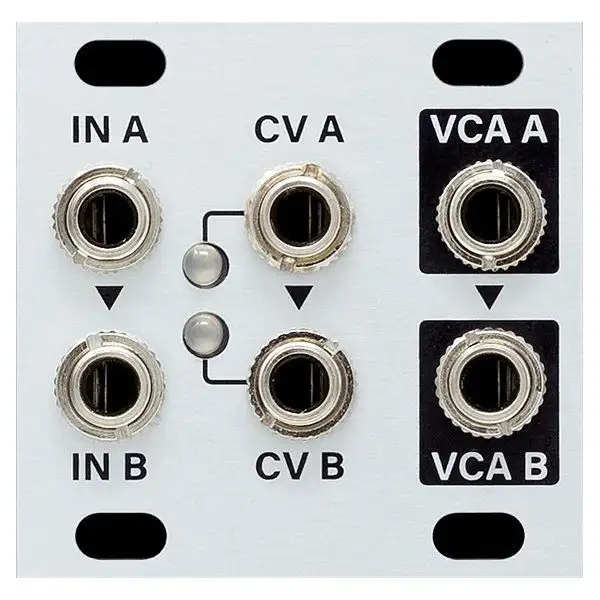

Brand new 😉 Intellijel Dual VCA 1U ⭐

The Voltage Controlled Amplifier or “VCA” is one of the most essential and useful building blocks in a synthesis patch. The Intellijel Dual VCA 1U packs two high quality, DC coupled, linear VCAs into a very compact 1U package.

Applications:

• Dual, independent VCA for dynamic level control of two different audio or cv sources
• Stereo VCA (use the CV normalling where CV A normals to CV B) for processing stereo sources or CV pairs.
• CV/Audio summing (when Out A is not patched, it normals to sum with OUT B, CV A and B control the independent levels)
• Voltage/signal doubling (use input A only and the doubled voltage will appear at OUT B when a CV of +5V applied to CV A)

Features:

• Two high quality and precise linear VCAs
• DC coupled
• LEDs to indicate CV level
• IN A normalled to IN B
• CV A normalled to CV B
• OUT A normalled to sum with OUT B
• Compact size
• Skiff/Palette friendly
