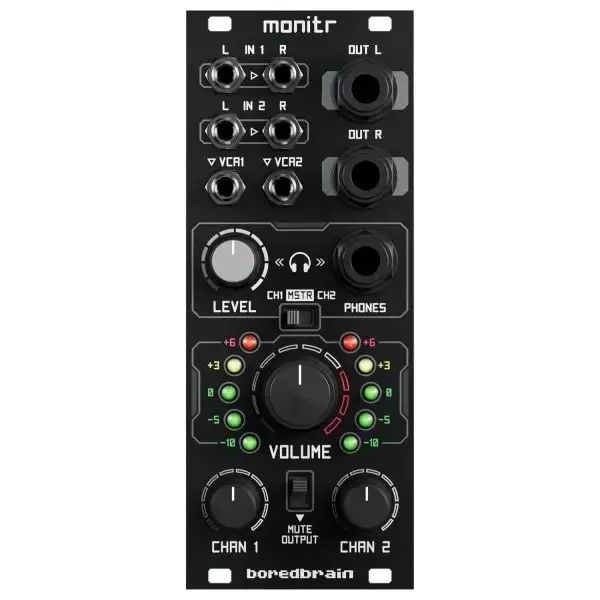

The Bordebrain Monitr is a comprehensive audio output monitoring utility for eurorack systems. The module is equipped with a stereo VCA-controlled input mixer with master volume control and VU meters, plus a powerful headphone section for both live performance and detailed monitoring.

STEREO VCA MIXER

Monitr’s two stereo inputs, IN 1 and IN 2, are AC-coupled specifically for audio signals, with the R inputs normalled to the L inputs. These input signals are amplified and mixed via stereo VCA circuits to reduce noise and allow for external voltage control. The CHAN 1 and CHAN 2 parameters are for manual adjustments of audio levels, while the VCA1 and VCA2 jacks accept control voltages. The full range of each stereo VCA is 10 Vpp. The mixed stereo signal is buffered and passed on to the master volume circuit.

MASTER CONTROL

The VOLUME parameter is a variable attenuator which controls the master stereo output level. It can also amplify the signal up to +6 dB above unity gain.

The output volume is visually indicated by two 5-segment VU METERS, scaled appropriately for +4 dBu professional line-level output. Best practice is to keep the master signal volumes at or below +3 dBu (GREEN, YELLOW), with transient peaks occasionally reaching +6 dBu (RED). This will optimize the signal’s dynamic range when feeding into audio interfaces or amplifiers.

Monitr also features a MUTE OUTPUT switch that completely silences the main outputs. This is convenient once sound check levels are adjusted before a live performance begins, as the mute switch does not affect the VU meters or headphone cueing section.

HEADPHONE CUE

The module’s headphone circuit is designed to drive a wide-range of headphones with enough detail and power for both studio monitoring and live performance. The LEVEL parameter adjusts the volume of stereo headphone plugged into the PHONES jack. Acceptable headphone impedance ranges from 32 Ω up to 600 Ω.

FEATURES:

• 2-channel stereo VCA mixer with CV per channel
• Master volume control and dual 5-segment VU meter
• Headphone amp with level and 3-way selectable cue source
• System mute switch for convenient output silencing
• Low-noise balanced pro line-level outputs at +4 dBu
