RE-DESIGNED. RE-ENGINEERED. RE-HOUSED.

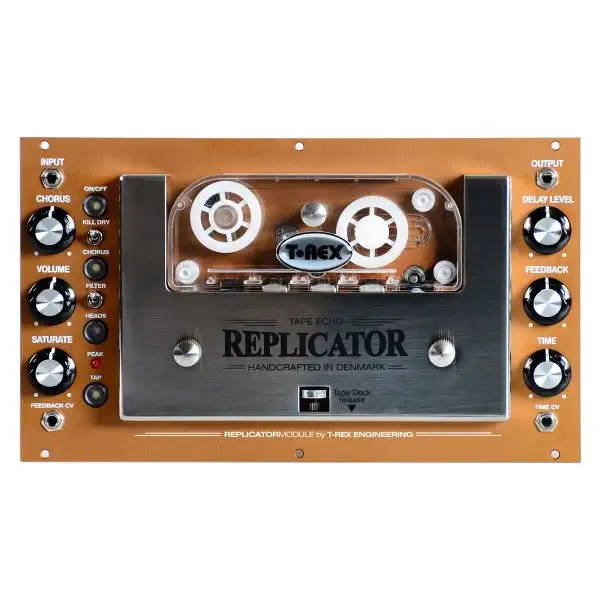

The T-Rex Replicator Studio Module uses much of the same technology of the ”stompbox” version, but certain parameters and features are optimized for Eurorack/studio use.

CV inputs accept 0-5 V control signals, so you can now plug in your favorite oscillator module and control delay time and/or feedback electronically. Pair it up with a funky, modern wave generator for a perfect marriage between ’70s ambience and contemporary sound manipulation.

The added filter switch dampens high frequency content in the delay signal for less noise and a darker echo.

The internal power rails has been modified to run from the ±12 V Eurorack standard, so you get all the same sounds and features from the pedal version, but in a more studio/keyboard/synth-friendly format.

Features:

• All analog echoes and signal path
• Delay time controlled by a digitally controlled motor
• Three echo modes, modulation of the echo and tap tempo
• CV inputs for controlling time/feedback – get super spacious, yet ultra cool sounds
• Kill-dry switch for parallel processing (mixer)
• Housed in a compact Eurorack module (44hp)

Specifications:

• Input impedance @ 1 kHz: 1 mOhm
• Output impedance @ 1 kHz: lower than 2.5 kOhm
• Power supply: 12 V DC
• Current draw @ 12 V DC: 300 mA
• Maximum input signal: 8.7 V p-p (12 dBu)
• External connectors: Input, Feedback, Speed, Output, Feedback CV, Time CV
• Controls: Chorus, Volume, Saturate, Feedback, Delay Level, Time, Heads, Chorus on/off, Filter switch, Tap tempo, Kill dry, On/off
• Pedal size including knobs: 222 x 38 x 129 mm / 8.74 x 1.5 x 5 in (W x H x D)
• Weight: 922 kg / 32.52 oz
