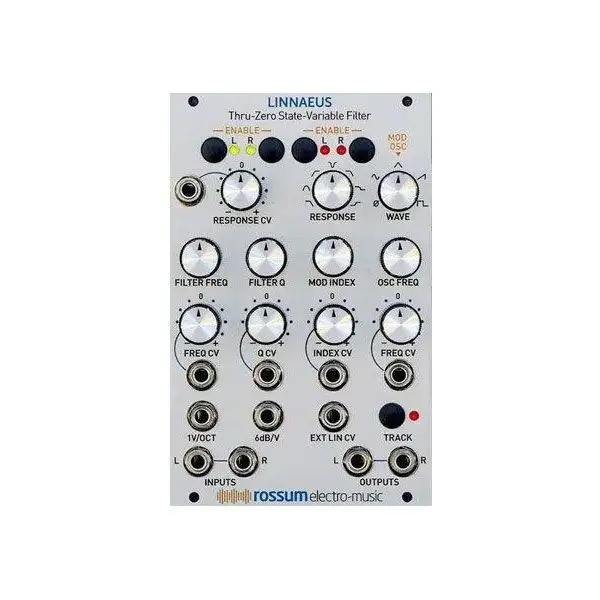

The Rossum Electro Linnaeus is a stereo state-variable filter that provides the unique ability to linearly modulate its resonant frequency through zero into negative frequency, while maintaining stability. With extensive voltage control of nearly every parameter, Linnaeus lets you manipulate the filter’s natural response curve in new ways, to create both subtle and dramatic timbral effects. And with a “one-knob-per-parameter” interface, Linnaeus inspires sonic creativity that invites (and rewards) real-time interaction.

Linnaeus’s cutoff/resonant frequency is exponentially voltage controllable from sub-audio to ultrasonic frequencies, while its resonant gain (Q) is exponentially voltage controllable from 0dB to greater than 60 dB.

Linnaeus’s channel output response characteristics are independently and continuously variable from Lowpass, through Bandpass, Highpass and Notch, to Low and High Shelving characteristics. Voltage control of the response characteristics are independently selectable for each of the two channels.

The linear thru-zero modulation is provided by an integrated modulation oscillator and/or an External Linear FM modulation input.

Features:

• Ultra-wide frequency range, exponentially voltage-controllable from sub-audio to ultrasonic via precise 1V/OCT and attenuverted CV inputs
• Thru-zero linear frequency modulation via an internal modulation oscillator and/or an external linear FM input
• Variable linear modulation index, voltage-controllable via an attenuverted CV input
• Resonance (Q) exponentially voltage-controllable from 0 dB to greater than 60 dB via 6 dB/V and attenuverted CV inputs
• Continuously variable response characteristics independently selectable for each of the two channels via individual Enable controlsCharacteristics include Lowpass (12 db/oct and 6 db/oct), Bandpass, Highpass (12 db/oct and 6 db/oct), Notch, and Low and High Shelving
• Voltage control of response characteristics via an attenuverted CV input, individual Enable controls let you independently enable or disable CV control of response for each channel
• An integrated modulation oscillator with continuously variable waveform from Off through Sine, Triangle, Sawtooth and Square, its frequency can be exponentially voltage controlled via an attenuverted CV input
• A Track control that lets the modulation oscillator precisely track the filter’s exponential frequency
• Stereo inputs and outputs – Linnaeus can process a stereo signal or two independent mono signals. While the two channels share the filter’s cutoff/resonant frequency, the filter response characteristics can be independently controlled for each channel
• The solid, high-quality construction you expect from Rossum Electro-Music
• Linnaeus is 16HP wide and 25 mm deep
• Power requirements (max): 140 mA +12 V, 25 mA -12 V, reverse polarity protected
