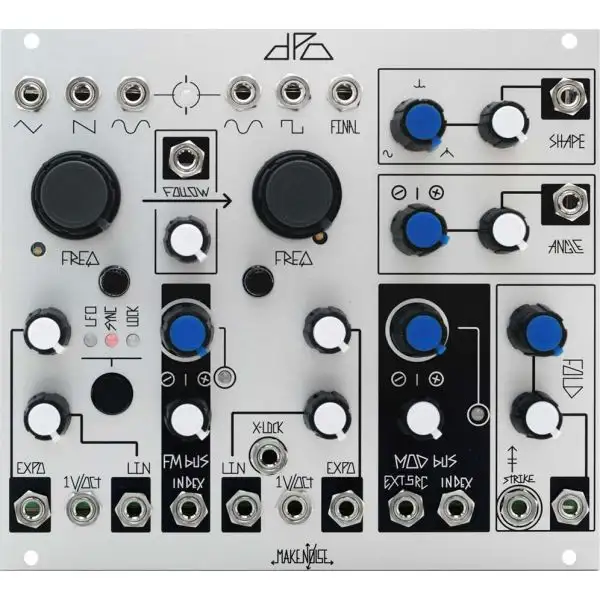

Expanding on the classic arrangement of Primary and Modulator Oscillators, the Make Noise DPO has both of the VCOs operable as complex signal sources. It is in essence a Dual Primary Oscillator.

Features:

• Vintage voiced, all analog
• Triangle Core with Sine, Saw, Spike & Square wave shapes
• Dedicated FM and Mod buses
• Modulation source signals are internally routed with associated destination CV attenuators setting final depths
• Mod Bus has added capability of using external source (patched at EXT. SouRCe input) in place of VCO 1 Sine
• Bi-Directional Dynamic FM Bus allows for circular FM
• VCO A features Hard Sync circuit which combined Dynamic FM yields complex sounds
• VCO A operates as LFO, perfect for slow morphing of VCO B timbres
• VCO B features complex timbral control through the use of a 3 parameter waveform shaping and Dynamic FM
• Utilizes Vactrols
• Pairs well with the Echophon

Specifications:

• Width: 28hp
• Max Depth: 30mm
• Power: 70mA@ +12V, 70mA @ -12V
