Budget 🎁 4ms Row Power 25 Eurorack Power Supply 🛒

The 4ms Row Power 25 is a clean, regulated, and protected power supply module for Eurorack systems. It requires a barrel-style power brick (15 V – 20 V DC) and supplies power to modules via flying bus cables, direct connection, and/or bus boards.

The Row Power 25 provides 25 W of power for any Eurorack modules (typically 4-10 modules, number of modules can vary depending on each module’s power consumption):

• +12 V @ 1.4A maximum, 1.0A recommended
• -12 V @ 0.8A maximum, 0.5A recommended
• +5 V @ 1.0A maximum, 0.8A recommended

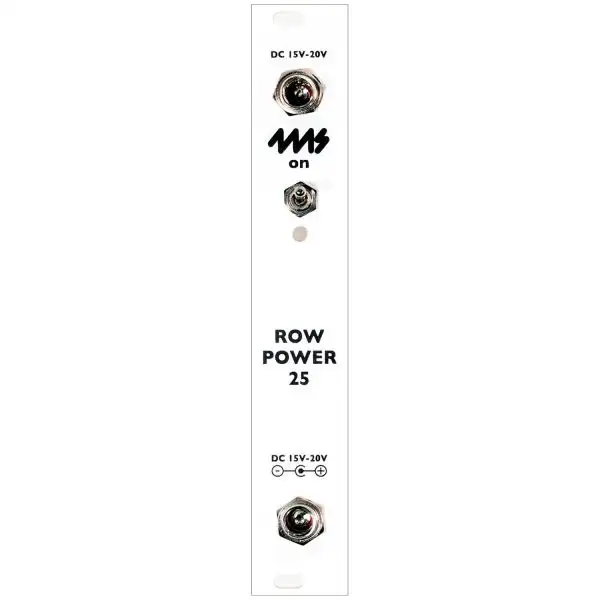

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Features:

• Two power jacks for daisy-chaining multiple Row Powers and Pods: a common laptop-style power brick could power 3-5 rows (typical)
• On/off switch cuts power without interrupting the daisy-chain
• LED light indicates module is on
• Row Power 25 typically will provide enough power for 4-10 modules (this can vary, based on each module’s power consumption)
• Runs cool: Row Power 25 is efficient so it won’t heat up your system
• Skiff-friendly: only 25.6 mm (1.01″) with power connector installed
• Includes set of easily soldered holes for custom distribution systems (by soldering wires or MTA156 connectors)
