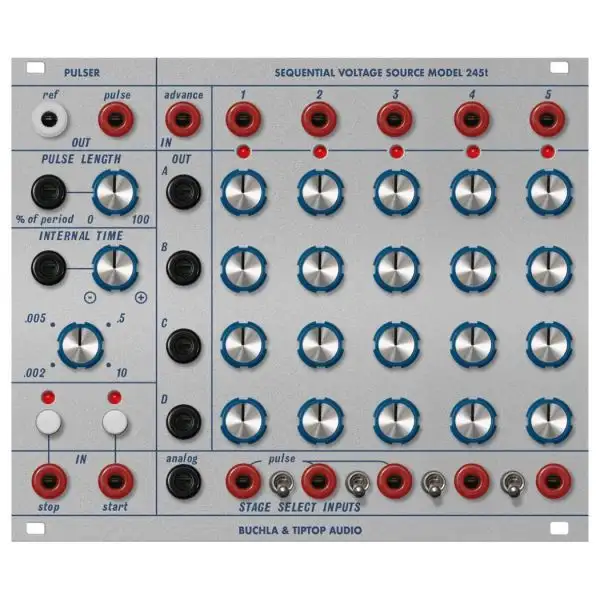

The Tiptop Audio Buchla Model 245t Sequential Voltage Source Module is an authentic replica of the renowned Buchla five-stage, four-row sequencer in Eurorack format. Adding to TipTop Audio and Buchla’s collaboration recreating famous 200 series modules for Eurorack, the 245t is a true modern remake of the original Buchla 245. The 245t has two sections – a pulser section (voltage-controllable clock) with transport controls and main sequencer section which offers four rows of customizable five-step sequencing.

The pulser section includes a pulse and “ref” out, a saw wave perfectly in phase with the running clock. The pulse out features a definable length which acts as a pulse-width control that can be modulated for different gating/triggering patterns. The pulse cycle rate is determined by the internal time control. Time shifts for slowing down or speeding up can be applied by incoming control voltages with an attenuverter at the CV input. The pulser section also offers transport controls for start and stop, both of which include manual button control or pulse input for external triggering.

FEATURES:

• Five-stage sequential voltage source module
• Buchla’s classic 200-series 245 adapted for Eurorack
• Four lanes of five stages each with their own CV positioning and outputs
• Select each stage via a pulse input or sweep/jump through stages via the analog CV input
• Loop at different stages via the input jack switches
• Each stage sends a pulse output at the top of the module
• Advance to the next stage with an external pulse/clock via the advance in
• Internal clock features a rate control as well as a modulation input and attenuverter
• Manually or CV control the start and stop of the internal clock
• Pulser clock features a pulse output as well as a reference saw wave output
• Pulser’s pulse width can be set or modulated via CV
• 3.5mm minijacks for full Eurorack integration
