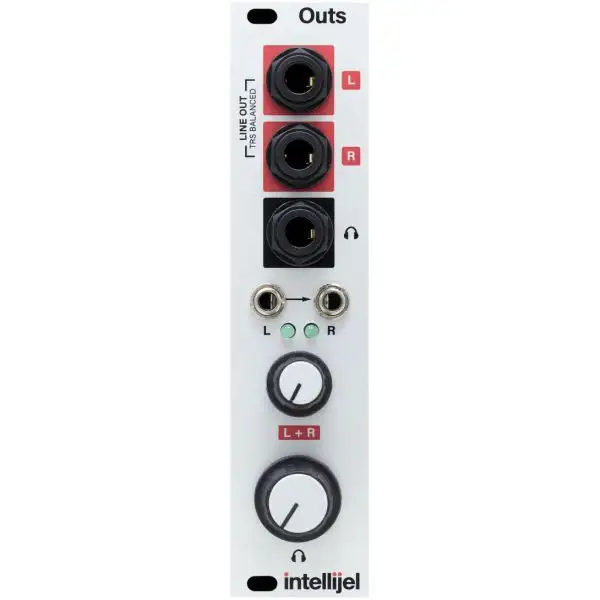

Promo 🧨 Intellijel Outs 💯

The Intellijel Outs enables your modular system to output both professional and prosumer compliant audio, and send it to external amplifiers, mixers, recording devices, or DAW interfaces. Using the L+R Level knob, it scales modular-level voltages down to the level required to drive external gear at either the +4 dBu balanced professional line-level standard or the -10 dbV unbalanced standard.

Headphone monitoring is also provided via a low noise built-in headphone amp with its own independent level control, capable of driving a wide range of impedances — from studio grade headphones to portable style earbuds.

Features:

• Studio grade low noise audio
• Headphone amp capable of driving high impedance headphones via 1/4″ stereo Neutrik jack
• Two channel, +4 dBu balanced line level outputs on TRS 1/4″ Neutrik jacks (fully compatible with -10 dbV unbalanced audio gear)
• Left input is normalled to the Right input, allowing a mono input signal to drive both stereo output channels.
• LEDs to monitor the modular-level signal sent into the device
• Attenuator knob for the line out level, plus a separate volume control for headphones
• 3-pin link connector on the back for connecting the output of a Mixup module directly to the Outs module
