Best deal ⭐ After Later Audio QARV Quad Attack, Release & VCA Module 🎉

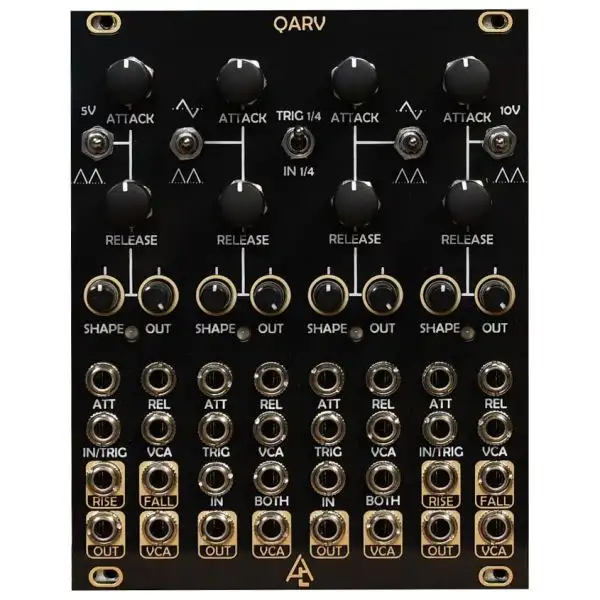

The After Later Audio QARV features four channels of function generator, oscillator, slew limiter, envelope, and VCAs. This module brings the ultimate in flexibility as it can be used as a standalone synth voice, a massive amount of modulation, or a four channel envelope generator with mixer. We believe this makes QARV a great first module and a great addition to the largest of systems.

All four channels have the following features:

• Uni-polar oscillator mode
• Attack and release time control via potentiometer and via input jack
• Shape control that controls shape for both attack and release
• Output attenuverter
• VCAs that normal to each subsequent channel (CH1 -> CH2, etc.). So you can get a mix of all four channels out of the CH4 VCA output (unless you patch a VCA output from an earlier channel)

Channels 1 & 4:

• Voltage source (CH1 – 5V & CH4 – 10V)
• CH1 & CH4 can be switched between IN (slew mode) and TRIG (envelope) mode
• RISE and FALL gates, you can use our G&T module to turn these gates into triggers

• Bi-polar oscillator mode
• Dedicated IN and TRIG jacks (helpful for adding offset to a triggered ENV)
• BOTH input jack to simplify patching both the attack and release (also inverts the input to give more standard pitch tracking of higher voltage equals higher pitch)
